In my next article we will discuss the work done by and reasons for using multi stage air compressors.
Two stage air compressor pv diagram.
Looking for guidance on the best air conditioner for your atlanta area home.
Two stage compression is shown below.
Get it as soon as wed sep 30.
In either case the advantage is illustrated in the pv diagram.
Only 4 left in stock order soon.

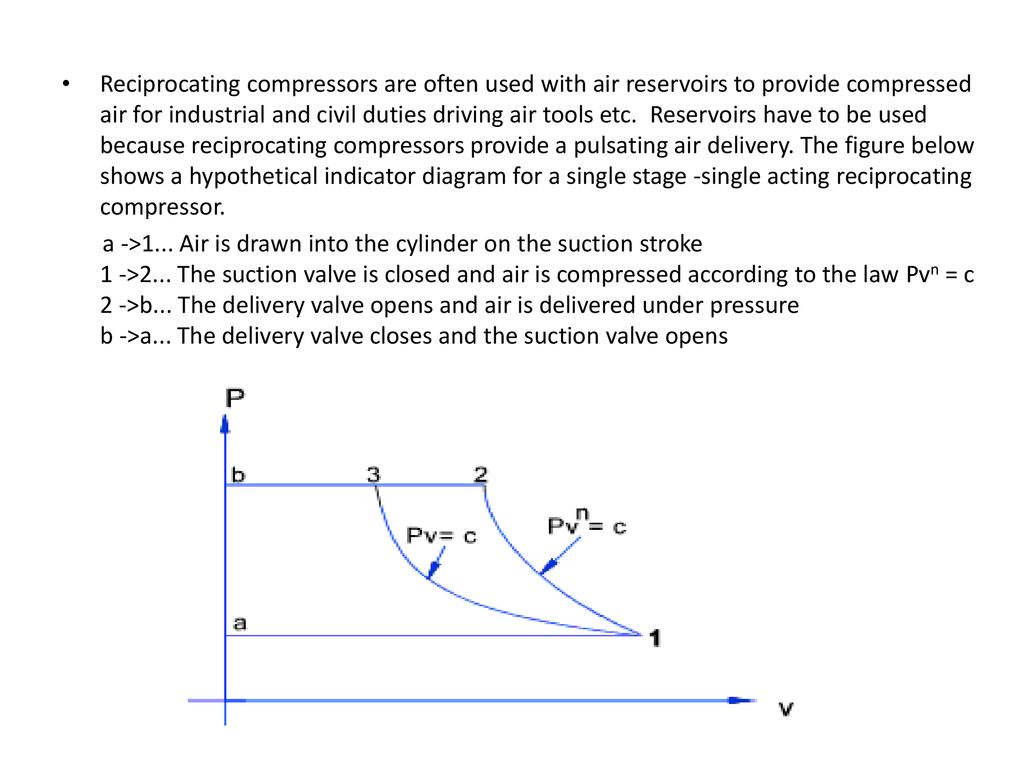

Also see the cycle or pressure volume diagram p v below which compresses gas from atmospheric pressure to 8 bar in two stages.
The area enclosed by the points 12341 represents the work of compression in a single stage compressor.
The relationship between the pressure and the volume is pvn c where n is a value of about 1 25 1 35.
The compressed air at the pressure p2 volume v2 and temperature t2 is delivered out of the compressor to the air receiver.
Cvp 3 2 9 5 4 1 cvp n 8 7 6 l p.
For pricing and availability.
Free shipping by amazon.
Single stage compressor.
Dewalt dxcmv5076055 60 gallon 5 hp two stage air compressor.
Visual filter title loading.
Single stage air compressor basic theory with pv diagram explanation.
California air tools cat 20015hp ultra quiet oil free 1 5 hp 20 gallon 175 psi two stage air compressor.
But just cooling the compressed air delivered out of each stage to near atmospheric temperature leads to increased overall operating efficiency and overcomes plenty of mechanical problems associated with the compressor.
This savings on the power required for the compression process pays off day in and day out for the life of compressors.
Above cycle compresses gas from atmospheric pressure to 8 bar in a single stage.
They turn themselves on and off continuously throughout the day.
A large reduction in the total work requirement is achieved relative to a single stage compression.
In my last article we discussed the limitations of a single stage air compressor and the problems associated with it.
Pv diagram with.
The actual compression process in an air compressor is between the isothermal and the adiabatic and is referred to as polytropic compression.
For pricing and availability.
Kobalt 60 gallon two stage electric vertical air compressor.
Reciprocating compressor multistage ideal conditions for multi stage compressors.
Two stage air compressors are more expensive than their single stage counterparts because there are more parts involved.
Single stage cycle.
Single stage compressors always operate at 100 capacity.
Therefore the costs to operate a two stage compressor could be less expensive in the long run.
Whether single stage two stage or variable speed our team can help you choose the right system.
8 1 5 6 1 1 5 11 1 1 n n p p vp n n w delivery temperature n n p p tt 1 1 5 15.
However the parts in a two stage unit are smaller and typically require maintenance at less frequent intervals.
